Auxiliary Equipment to Support Complete Label and Packaging Production Lines
A production line performs only as well as its supporting equipment allows. GGIN auxiliary equipment covers the handling, inspection, and finishing functions that keep label printing and converting operations running at full efficiency — from web guiding and tension control to core handling and finished roll management.
Auxiliary Equipment Manufacturer in China
GGIN supplies a range of auxiliary equipment designed to complement label printing machines, converting lines, and slitting rewinder systems in production environments across the label and flexible packaging industry.
Our auxiliary product range includes roll handling systems, web guiding units, corona treatment equipment, inspection rewinders, core cutters, and finished goods handling solutions. Each item is selected and configured to integrate with primary production machinery and reduce manual handling requirements on the production floor.
Whether you are equipping a new production line or adding efficiency to an existing setup, our technical team can advise on the appropriate auxiliary equipment specification based on your web width, substrate type, and production throughput requirements.
CC-600 Paper Core
Cutting Machine
CC-1300 Automatic Paper
Tube Cutter
GCM-450 Ultrasonic Anilox Roller Cleaning Machine
PM-450 Plate Mounting
Machine
PM-650Z Plate Mounting Machine
PW-450 Flexo Plate Washing Machine
LF-150E Electric Roll Transport Lifter
Adjustable Anvil Cylinder
LF-150E Electric Roll Transport Lifter
Printing Cylinder
MAIN TECHNICAL PARAMETERS:

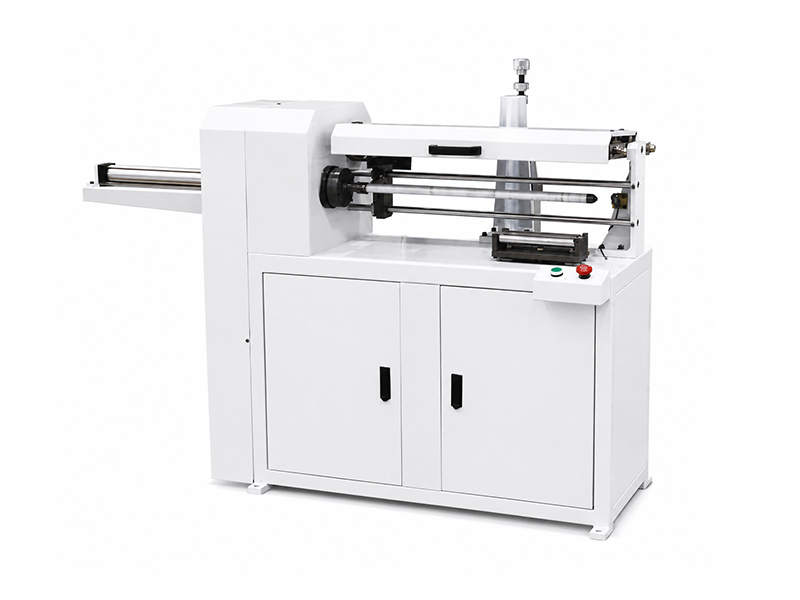

CC-600 paper tube cutting machine is a perfect solution for cutting paper core in different thickness and different diameter.
It has characteristics of convenient and fast operation, compact structure, fast speed and steady running.
| Model | CC-600 |
| Max. Cutting Width | 600mm |
| Min. Cutting Width | 10mm |
| Paper Core Inner Diameter | 25-120mm |
| Max. Cutting Wall Thickness | 6mm |
| Power Supply | 220V/1Phase |
| Dimensions | 1500×700×1400mm |
| Weight | 250KGS |
CC-1300 is Intelligent, Efficient, Stable, Streamlined structure, Low maintenance cost.
1.Using servo positioning system, automatic tube cutting counting, automatic shutdown.
2.Large storage capacity, using cylinder for automatic loading and unloading, automatic pipe retraction, no need for manual operation, freeing both hands.
| Model | CC-1300 |
| Paper Tube Length Range | 1000-1300mm |
| Paper Tube Thickness | 2-10mm |
| Min. Cutting Width | 10mm |
| Paper Tube Diameter Range | 25-76mm |
| Blade Quantity | One set |
| Power Supply | 380V/3phase |
| Overall(L*W*H) | 3900x1400x1500mm |
| Weight | 600KGS |

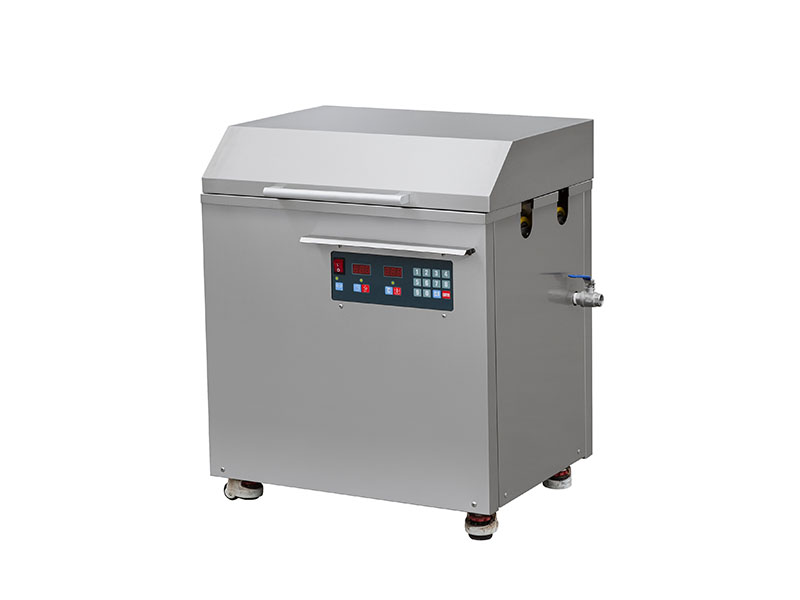

1.Economical and practical cleaning equipment with multiple remarkable functions
2.Safe and effective cleaning anilox roller
3.Equipped with heating and constant temperature system
4.The waterproof function has been largely improved, which makes the product durable and safe
5.Stainless steel shell, making the product more graceful and durable in use
| Model | ACM-450 |
| The Length of Anilox Roller | 100-450mm |
| Quantity of Vibrator | 18pcs |
| Working Frequency of The Cleaner | 40KHz |
| Temperature Control Range | 30℃-100℃ |
| Power Supply | 220V/1Phase |
| The Length of Rinsing Tank | 460mm |
| The Width of Rinsing Tank | 320mm |
| Packing Dimensions | 1000×680×980mm |
| Machine Weight | 100KGS |

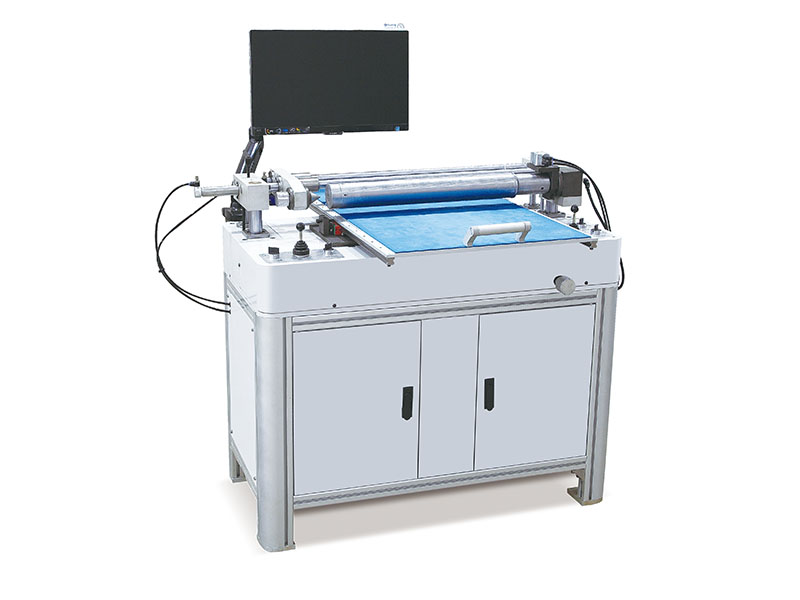

1.PM-450 Plate Mounter is an ideal partner for quicker and easier application on flexo plate mounting process by high precision control with advanced camera and LED lighting system
2.Flat table structure enables the cliché to be accurately and quickly positioned along the centre line under the cylinder
3.Fit for BOBST, Gallus, MPS, Mark Andy, compatible with shaft cylinder and sleeve cylinders
| Model | PM-450 |
| Plate Mounting Width | 450mm |
| Cylinder Range | Z76-Z180 (241.3mm-635mm) |
| Voltage | 220V/1Phase |
| Dimensions | 1050×600×1500mm |
| Weight | 200KGS |

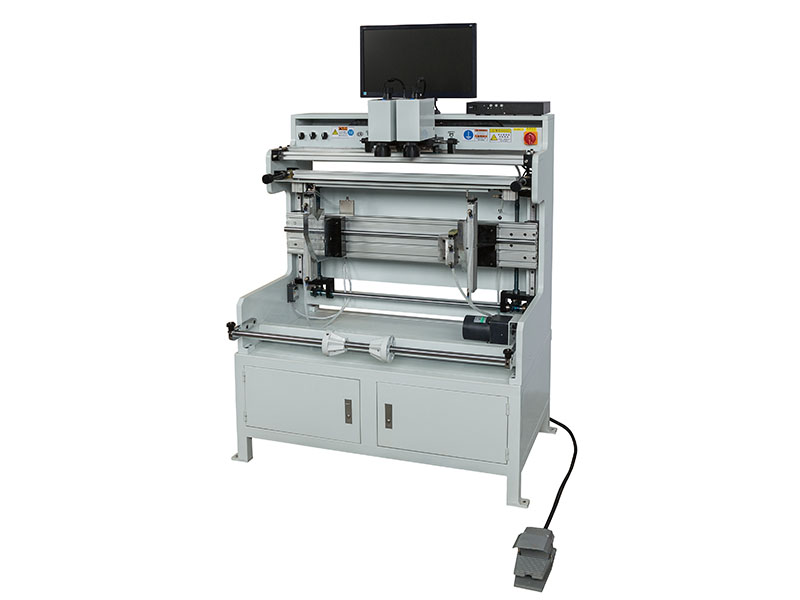

1.The rack construction with the wallboard structure after high-strength holistic processing has great working stability and is durable in use;
2.The 650-line color high-definition camera can reach 70-times amplification ratio, present clear images, possess high resolution ratio, and substantially improve the precision of the plate;
3.The complete machine adopts the centralized control of circuits, which is convenient for operations and has relatively high degree of automation;
4.The 19-inch high-resolution liquid crystal display provides clear and bright images and effectively alleviates the visual fatigue of operating workers.
| Model | PM-650Z |
| Max. Width of Plate Cylinder | 650mm |
| Max. Perimeter of Plate Cylinder | 800mm |
| Precision of the Plate | Better than ±0.15mm |
| Resolution Ratio of the Camera Lens | 650 Line |
| Maximum Focal Length of the Camera Lens | 70 Times |
| Overall Diameter（L×W×H） | 1050×600×1650mm |
| Weight | 270KGS |

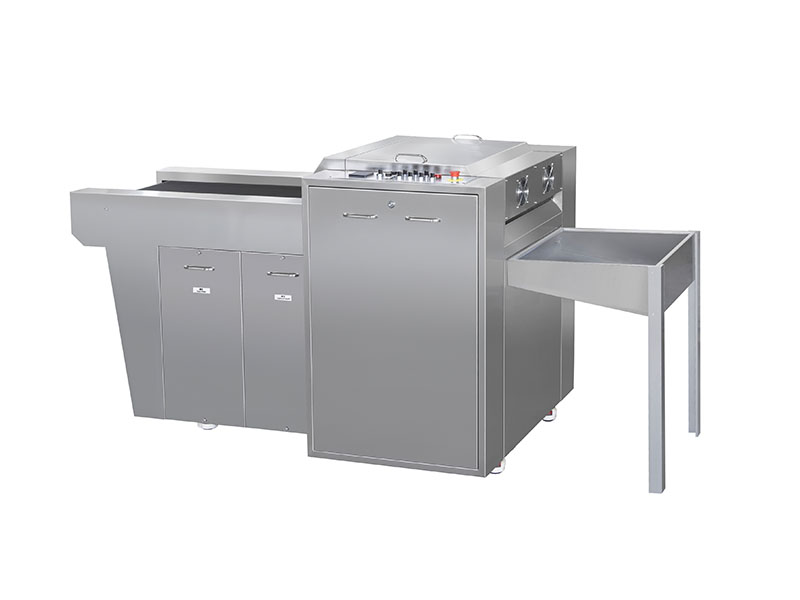

1.This machine cleans the plates used in letterpress printing in a gentle way, achieving a 100% clean, dry and ready-to-use result
2.The washing and rinsing series provide an automatic two-stage cleaning process, the first stage is cleaning with cleaning fluid, the second stage is rinsing with clean water. At the same time, the liquid has a circulating filter function
| Model | PW-450/650/1050 |
| Max. Plate Length | 450mm/650mm/1050mm |
| Voltage | 220V |
| Dimensions | 2350×1100×1150mm |
| Weight | 350KGS |

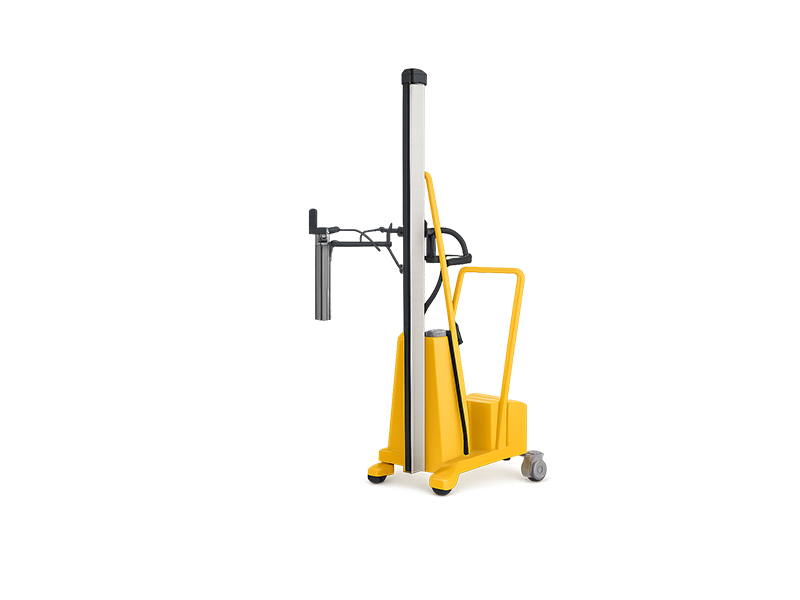

Comes standard with a 3-inch shaft that allows for 360-degree rotation, ensuring ease of use.
Constructed from high-quality and thickened steel, it is durable, corrosion-resistant and resistant to deformation.
Features electric lift control for simple, effortless operation
| Model | LF-150E |
| Max. Roll Width | 500mm |
| Max. Roll Diameter | 750mm |
| Max. Load | 150KGS |
| Max. Lifting Hight | 1350mm |
| Roll Diameter | 76mm |
Looking to Improve Efficiency Across Your Label or Converting Line?
Describe your current production setup and the handling or finishing challenges you need to solve — our team will recommend the right auxiliary equipment and provide a detailed quotation within 24 hours.
