Non-Stop Splicer&Rewinder for Uninterrupted Production Output

Unplanned downtime for roll changes is a direct cost to production output. GGIN non-stop splicer and rewinder systems are designed for label converters and printing operations where continuous web feed is essential — enabling automatic roll splicing and rewinding without stopping the press or converting line.

Get A Quote

Non-Stop Splicer&Rewinder Manufacturer in China

GGIN manufactures non-stop splicer and rewinder equipment for integration into label printing lines and converting operations where production continuity and roll change efficiency are operational priorities.

Our non-stop unwind splicers enable automatic web joining at running speed, eliminating press stops caused by roll depletion. Rewinder systems provide continuous finished roll output with automatic transfer, reducing operator intervention and maintaining consistent tension throughout the roll change cycle. Both systems are available in configurations suited to narrow-web and mid-web applications.

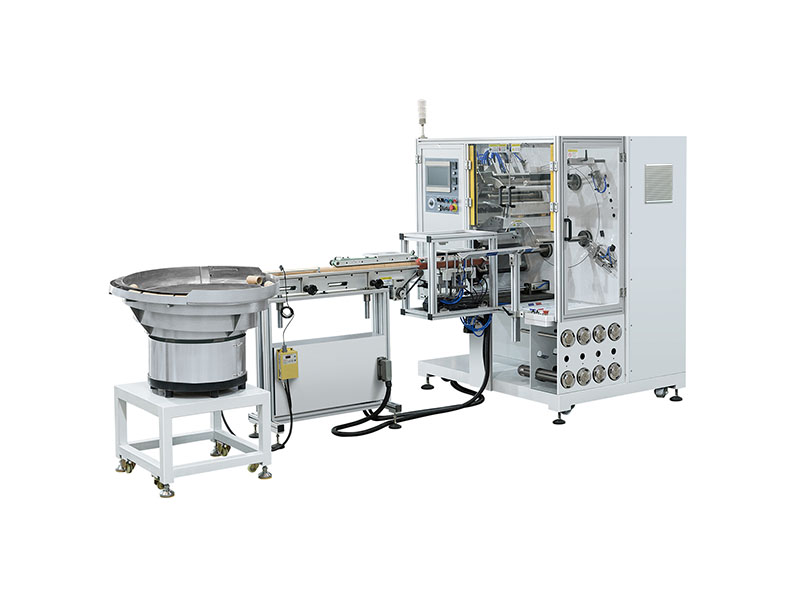

Turbo-330 Automatic Turret Rewinder

Turbo-330
Automatic Turret Rewinder

Inquiry Now

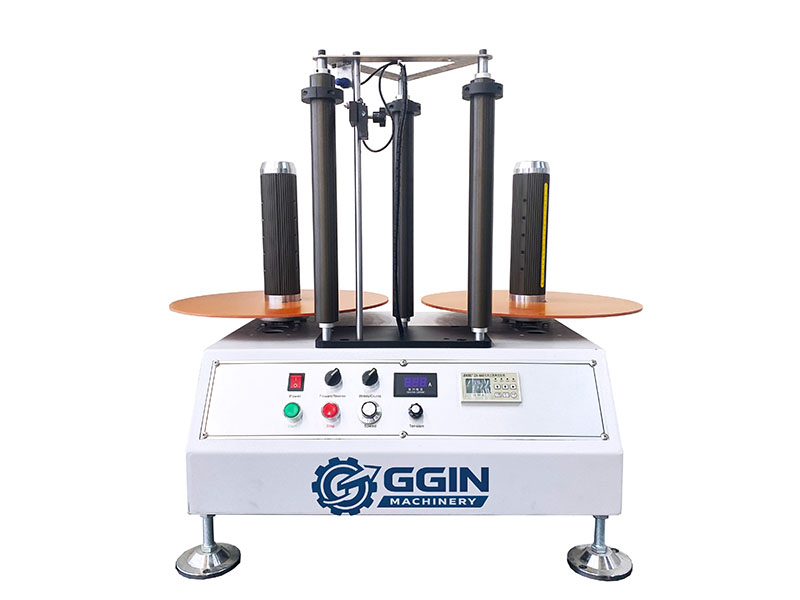

RW-450B Desktop Rewinding Machine

RW-450B
Desktop Rewinding Machine

Inquiry Now

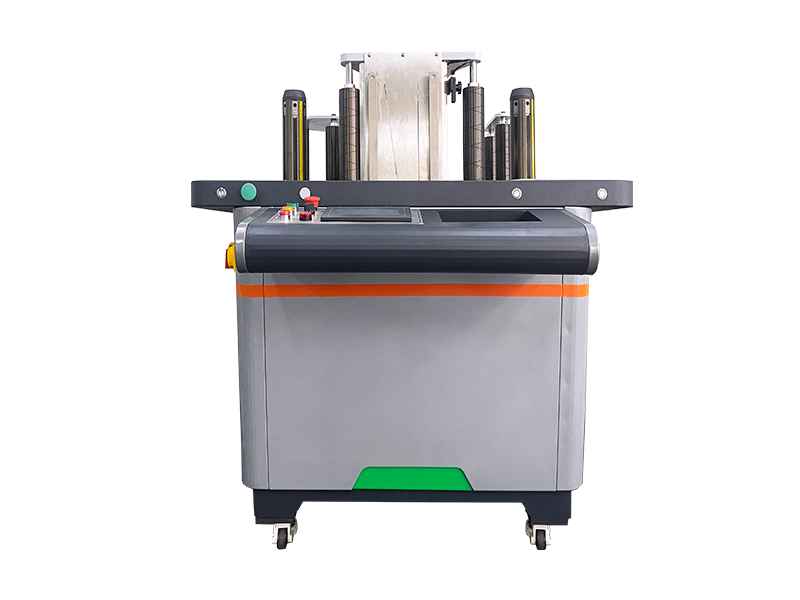

RW-230S Desktop Inspection Rewinding Machine

RW-230S Desktop Inspection Rewinding Machine

Inquiry Now

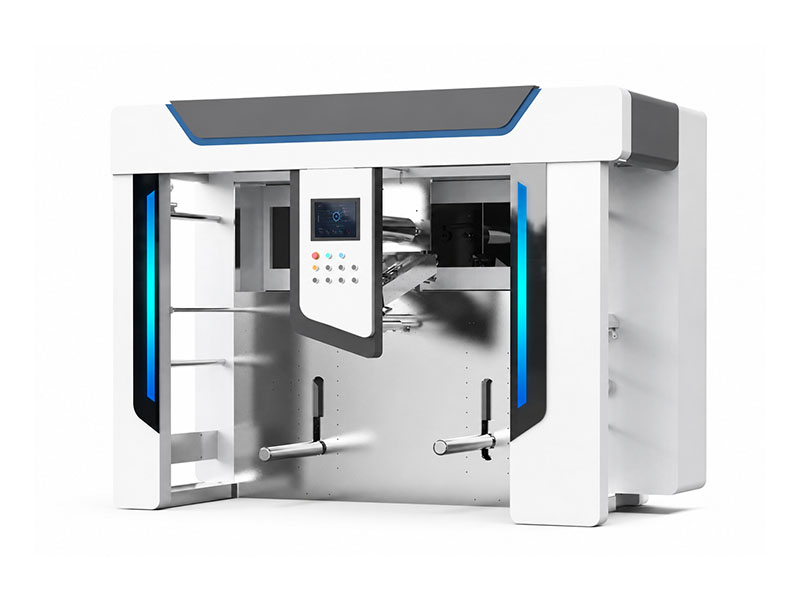

NU-370 Automatic Non-stop Splicer

NU-370
Automatic Non-stop Splicer

Inquiry Now
NU-370 Automatic Non-stop Splicer

NU-370
Automatic Non-stop Splicer

Inquiry Now

MAIN TECHNICAL PARAMETERS:

Turret Rewinder is equipped with automatic paper tube feeding mechanism, can non-stop rewinding online, available with die cutting machine, slitting machine, flexo printing machine and so on.

Equipped with 1”, 1.5” and 3” air expanding shaft. Without manual adjustment when being replaced different reel size. The system will automatically adjust according to the size of the reel.

Rewinding products can be easily separated from the paper tube, not to end customers caused by printer tape, print head damage.

    ModelTurbo-330Turbo-450Turbo-570
    Max. Rewinding Diameter350mm350mm350mm
    Max. Web Width330mm450mm570mm
    Min. Rewinding Width40mm40mm40mm
    Max. Speed60-100m/min60-100m/min60-100m/min
    Machine Power8KW10KW12KW
    Power Supply3PH+N+PE3PH+N+PE3PH+N+PE
    Air Source0.8MPa0.8MPa0.8MPa
    Overall Dimension1450*3000*1700mm1450*3500*1700mm1450*3800*1700mm
    Weight2000KGS2100KGS2200KGS

    Using frequency converter, start-stop/acceleration/deceleration is more accurate and stable
    Adopt brand motor/reducer, digital display governor, stepless speed change to ensure stable operation of the machine
    Available options: forward & reverse rewind, touch screen and auto inflation etc.

    ModelRW-450B
    Max. Rewinding Speed60m/min
    Max. Web Width350mm
    Max. Unwinding Diameter450mm
    Max. Rewinding Diameter450mm
    Max. Load30KG
    Power Supply220V/1Phase
    Core Diameter3inch (1inch and 40mm are available)
    Overall Diameter（L×W×H)640×550×680mm
    Weight60KG

    The tension system automatically adjusts parameters to ensure that it matches the tension required by the actual paper
    The machine PLC system has a meter counting function, which is used for visual inspection and shutdown of the equipment so that users can deal with defective products
    The machine’s touch screen supports preset meter output settings, and can stop the machine according to the set meter value

    ModelRW-230S
    Max. Rewinding Speed120m/min
    Max. Detection Speed60m/min
    Max. Web Width230mm
    Max. Unwinding Diameter400mm
    Max. Rewinding Diameter400mm
    Start Acceleration≤5s Deceleration stop time: ≤2.5s
    Core Diameter3inch (1inch and 40mm are available)
    Overall Diameter（L×W×H)1250×1200×1200mm
    Weight300KG

    This precise automatic unwinding system ensures nonstop feeding for web materials to printing and converting machinery (fit on the existing or new press lines)

    1. Suitable for film, composite materials, stickers and other printed materials.
    2. Controlled feeding device for different roll diameter marerials.
    3. Two rolls of full diameter material can be loaded at the same time.
    4. Servo system to ensure the tension in the paper process is stable
    ModelNU-370
    Max. Splicing Speed150m/min
    Max. Splicing Width370mm
    Max. Unwinding Diameter900mm
    Suitable Substrate Material0.03-0.5mm
    Power Supply380V/3Phases
    Dimension2800×1250×2200mm
    Weight1500KGS

    Automatic meter, counting stop function, sub-volume label more accurate, to avoid missing or waste
    Cross the separation of paper, to avoid the adhesion caused by tape break, deviation, overlap and other defects.
    The knife structure, broken paper faster, more secure

    ModelNR-370
    Max. Rewinding Width370
    Max. Rewinding Diameter700
    Max. Rewinding Speed150m/min
    Power Supply380V/3Phases
    Power9KW
    Dimension1500×2450×2000mm

    A non-stop unwinder automatically changes material rolls without stopping the production line. When the running roll is nearly finished, the standby roll is spliced automatically, allowing continuous production and minimizing downtime.

    This solution is widely used with flexographic printing machines, slitting machines, and other converting equipment where uninterrupted production is essential.

    A non-stop rewinder automatically transfers the web to a new core when the finished roll reaches the preset diameter. Production continues without stopping the machine, improving productivity and reducing waste.

    It is commonly used in high-speed label and flexible packaging production.

    Our systems can be integrated with a variety of converting equipment, including:

    * In-line flexographic printing machines
    * Slitting and rewinding machines
    * Die cutting machines
    * Inspection and finishing lines

    We can customize the interface and control system according to your existing production line.

    A four-shaft turret rewinder is designed for continuous roll changing without interrupting production.

    While one shaft is rewinding the finished roll, another shaft is prepared for the next roll, allowing automatic roll transfer.It is an ideal solution for high-speed label converting and finishing applications where productivity and consistent roll quality are critical.

    Yes. It can be integrated with many production lines, including flexographic printing machines, slitting machines, and die cutting machines.
    Our engineering team can customize the connection method, web path, control signals, and synchronization according to your production requirements.

    Compared with conventional rewinders, a turret rewinder offers:

    * Continuous production without stopping
    * Higher production efficiency
    * Reduced material waste
    * Consistent roll quality
    * Lower operator workload

    It is especially suitable for medium- and high-volume production.

    A desktop rewinder is a compact rewinding machine used for rewinding, roll inspection, meter counting, and roll direction changing.It is commonly used in label printing, quality inspection, sample preparation, and small-batch production.

    Ready to Eliminate Press Stops Caused by Roll Changes?

    Share your press model, web width, and current roll change frequency with our team — we’ll confirm compatibility and provide a tailored solution with full pricing within 24 hours.
