Label Die Cutting Machines
GGIN label die cutting machines are engineered for label converters who demand consistent cutting depth, clean matrix stripping, and stable registration across extended production runs on paper, film, and specialty substrates.
Label Die Cutting Machines Manufacturer in China
GGIN supplies label die cutting machines to label converters and packaging producers requiring reliable rotary die cutting performance for pressure-sensitive and non-adhesive label applications.
Our die cutting machines support flatbed and rotary cutting configurations, with compatibility across a wide range of die tooling types and substrate thicknesses. Cutting pressure, registration control, and matrix rewind systems are all adjustable to meet job-specific requirements. Inline laminating, sheeting, and inspection options are available for integrated converting line configurations.
GRDC-450X High Speed Full Rotary Die Cutting Machine
GRDC-370S Intermittent Rotary
Die Cutting Machine
GRDC-450 Automatic Full Rotary Die Cutting Machine
GFDC-350G Flatbed Die Cutting Machine
GRDC-370L IML
Die Cutting Machine
GF-320D Folding Machine
With Two Die Cutting Stations
MAIN TECHNICAL PARAMETERS:

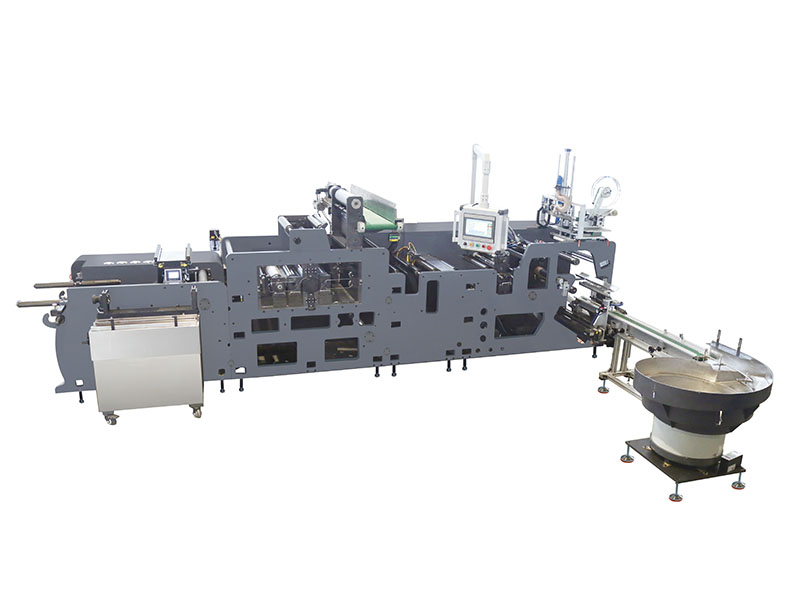

The GRDC-350X die cutting machine adopts servo driven system. Turret rewinder with automatic cutting device and automatic labeling system, with high stability and reliability, can run very smoothly in actual production.
It can achieve a fully automatic work cycle, operating both online and offline. Suitable for paper tubes of different diameters from 1 inch to 3 inches, it is a new generation of ideal self-adhesive die-cutting and slitting equipment
| Model | GRDC-450X |
| Max. Mechanical Speed | 150m/min |
| Max. Web Width | 450mm |
| Max. Unwinding Diameter | 1200mm |
| Max. Turret Rewinding Diameter | 200mm |
| Min. Slitting Width | 30mm |
| Power Supply | 380V/3phase |
| Air Source | 0.8MPa |
| Overall(L*W*H) | 3200x3250x1900mm |
| Weight | 2600KGS |

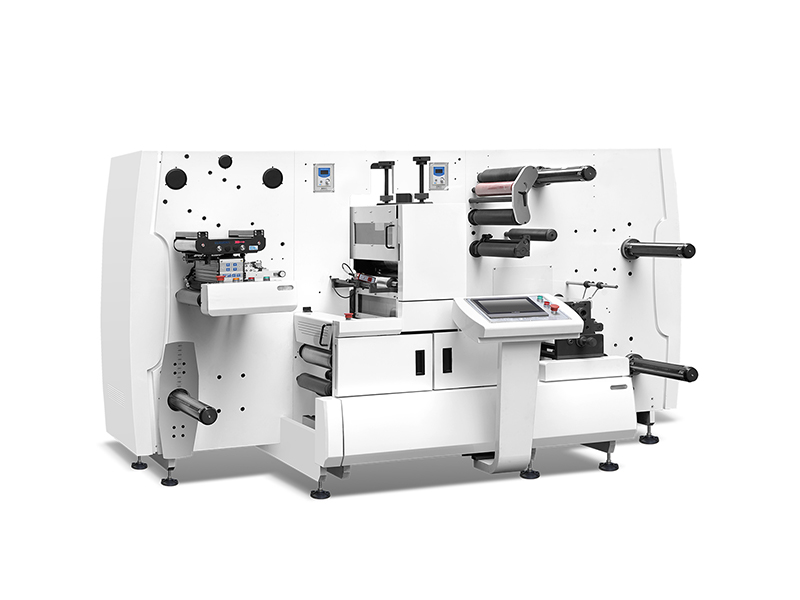

This GRDC-370S is servo driven intermittent rotary die cutting machine which designed for high efficiency label finishing. It equipped with intermittent rotary die cutting unit and slitting unit, it adopts advanced servo control system, user-friendly operation panel, greatly improve product quality and production efficiency.
With the latest full-rotary and intermittent interchangeable technology; Suitable for digital printing label small and medium quantity orders after die-cutting.
| Model | GRDC-370S |
| Max. Speed | 60m/min (semi rotary) |
| Max. Web Width | 370 |
| Die Cutting Area | 380mm×350mm (L×W) |
| Die Cutting Precision | ±0.15 |
| Max. Unwinding Diameter | 800 |
| Max. Rewinding Diameter | 800 |
| Magnetic Cylinder | 140T 1/8” CP（Standard） |
| Power Supply | 380V/3Phases |
| Overall(L*W*H) | 2600×1400×1600mm |
| Weight | 2500KGS |

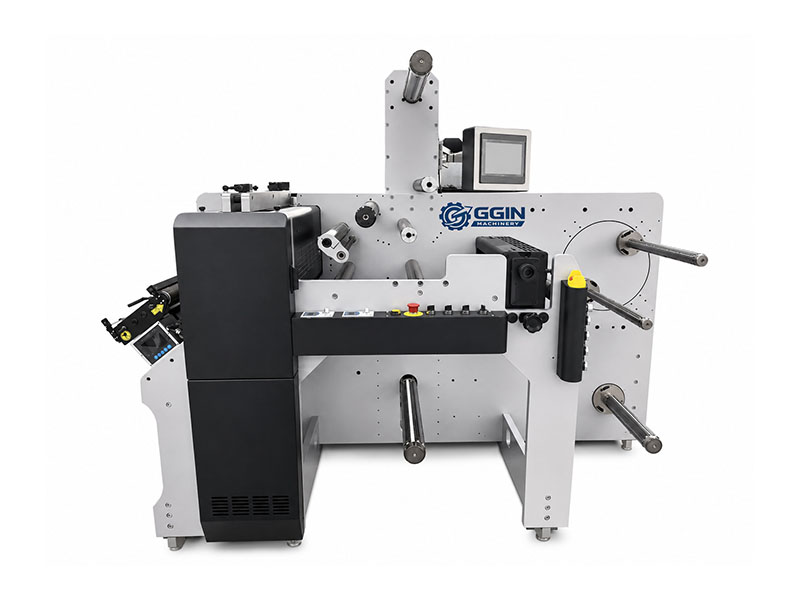

The GRDC-450 die cutting machine is a full rotary die cutting machine which designed for high efficiency label finishing.
The machine has the characteristic of compact structure, fast speed, high efficiency, easy operation, accurate die cutting and steady running etc
| Model | GRDC-450 |
| Max. Mechanical Speed | 120m/min |
| Max. Web Width | 440mm |
| Max. Unwinding Diameter | 700mm |
| Max. Turret Rewinding Diameter | 380mm |
| Min. Slitting Width | 30mm |
| Power Supply | 380V/3phase |
| Air Source | 0.6MPa |
| Overall(L*W*H) | 2100x1400x1500mm |
| Weight | 1500KGS |

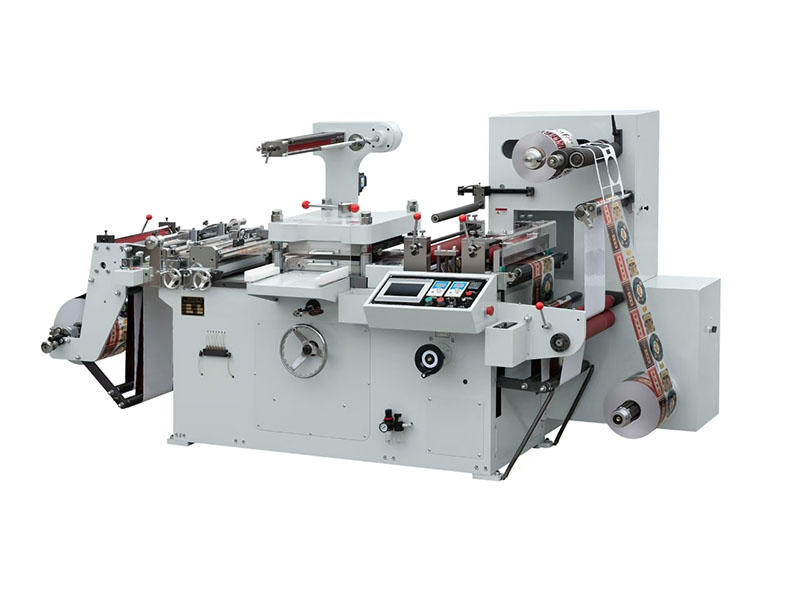

This is a kind of flat-bed die cutting machine with high precision, whose material-going is controlled by servo motor. The photoelectric eyes do the web guiding job.
Die cutting, laminating, waste rewinding and sheeter (or rewinding) can be finished in one process. The machine is applicable to die cut adhesive paper label, dacron film label and laser anti-false label.
It is an ideal auxiliary machine for flexo printer, silk-screen printer, rotogravure printer and so on.
| Model | GFDC-350G |
| Die Cutting Speed | 20-300press/min |
| Max. Web Width | 370mm |
| Cutting Area | 350*350mm |
| Max. Unwinding Diameter | 600mm |
| Max. Rewinding Diameter | 600mm |
| Position Accuracy | ±0.1mm |
| Power Supply | 380V/3Phase |
| Overall(L*W*H) | 2900x1200x1500mm |
| Weight | 1800KGS |
Independent developed efficient label die cutting machine, with inspecting, die cutting, waste discharging, stacking collecting function. It adopt servo drive, high positioning accuracy and stable quality, can be applied to adhesive, card paper, paper, film etc
It can expandable lamination, vanish, slitting and stamping, provide optimum label processing solutions for you

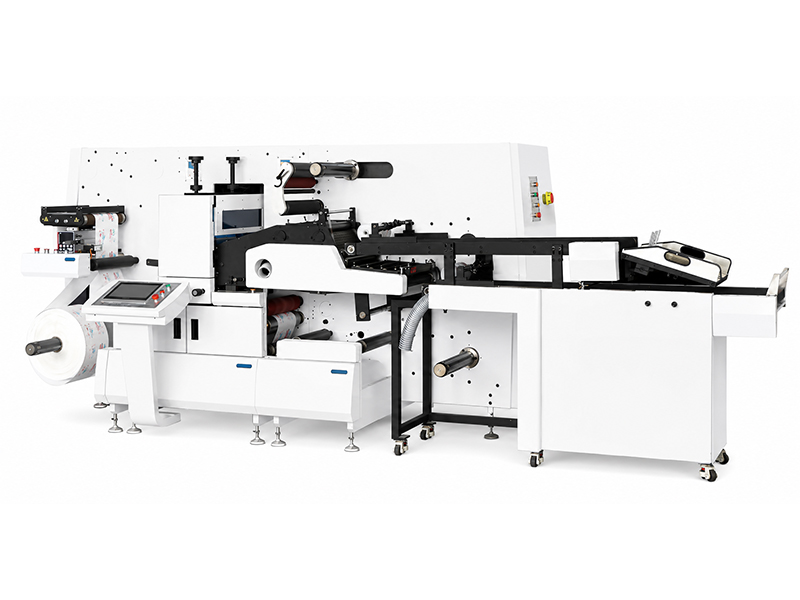

| Model | GRDC-370L |
| Max. Web Width | 370mm |
| Max. Semi Rotary Speed | 60m/min |
| Max. Die Cuting Repeat | 444.5mm |
| Max. Die Cuting Area | 360mm*444.5mm |
| Accuracy of IML Cutting | ±0.2 |
| Max. Unwinding Diameter | 800 |
| Max. Rewinding Diameter | 800 |
| Thickness Of Material | 60-300um |
| Power Supply | 380V/3Phases |
| Air Source | 0.8MPa |
| Dimension | 2800×1530×1600mm |
| Weight | 3000KGS |
The machine adopts full servo PLC controlled, unwinding and rewinding are controlled by automatic tension
The machine comes with swing-arm control panel, the folding length can be input on the touch screen directly
Can be used for efficient folding of logistics labels, boarding passes, scenic tickets, game coins etc
| Model | GF-320D |
| Max. Die Cutting Speed | 120m/min |
| Max. Folding Speed | 80m/min |
| Folding Width | 60-320mm |
| Max. Unwinding Diameter | 800mm |
| Max. Rewinding Diameter | 700mm |
| Max. Folding Length | 350mm |
| Min. Folding Length | 100mm |
| Min. Dotted Slitting Width | 60mm |
| Power Supply | 380V/3phase |
Custom Label Die Cutting Machine Configurations for Your Production Requirements
Die cutting accuracy requirements differ across label shapes, substrate thicknesses, and production speeds. GGIN label die cutting machines are available in rotary and flatbed cutting configurations, with cutting pressure, registration control, and matrix rewind systems adjustable to meet your specific job requirements.
Substrate compatibility, die tooling type, cutting depth tolerance, and optional inline functions such as laminating, sheeting, or inspection are all confirmed during a pre-order engineering review with your technical team.
Ready to Improve Cutting Accuracy and Reduce Waste on Your Production Line?
Provide your substrate thickness, label shape requirements, and expected run speeds — our engineers will advise on the correct die cutting configuration and respond with a quotation within 24 hours.
