Complete Converting & Finishing Equipment
Label converting requires precise coordination between printing,
die cutting, laminating, and finishing — all within a continuous
web process. GGIN label converting machines are built for
converters who need reliable throughput, repeatable quality,
and the flexibility to handle diverse substrate and job
specifications across production shifts.
Label Converting Manufacturer in China
GGIN is a China-based manufacturer of label converting equipment, supplying integrated converting lines and individual converting machines to label producers and packaging converters worldwide.
Our equipment supports pressure-sensitive label converting, wet-glue label production, and multi-layer laminate converting across substrates including paper, film, and foil materials. Machines are configurable to accommodate different web widths, converting speeds, and inline finishing requirements.
Each system is engineered and assembled at our facility, with full factory testing completed prior to shipment. Our technical team supports customers through machine specification, installation, and ongoing after-sales service to ensure consistent production performance over the equipment lifecycle.

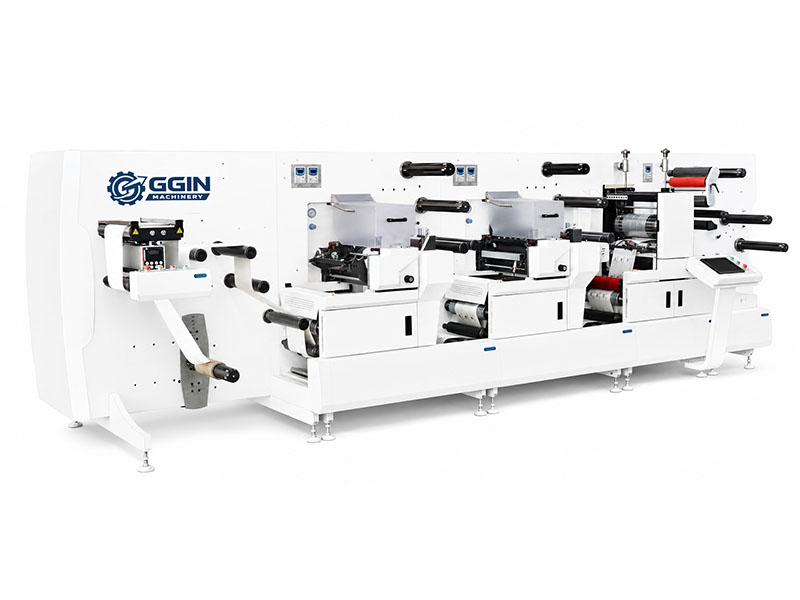

FX-370 Modular Flexo Printing Finishing Machine
FX-370 Pro Modular Screen Printing Coverting Machine

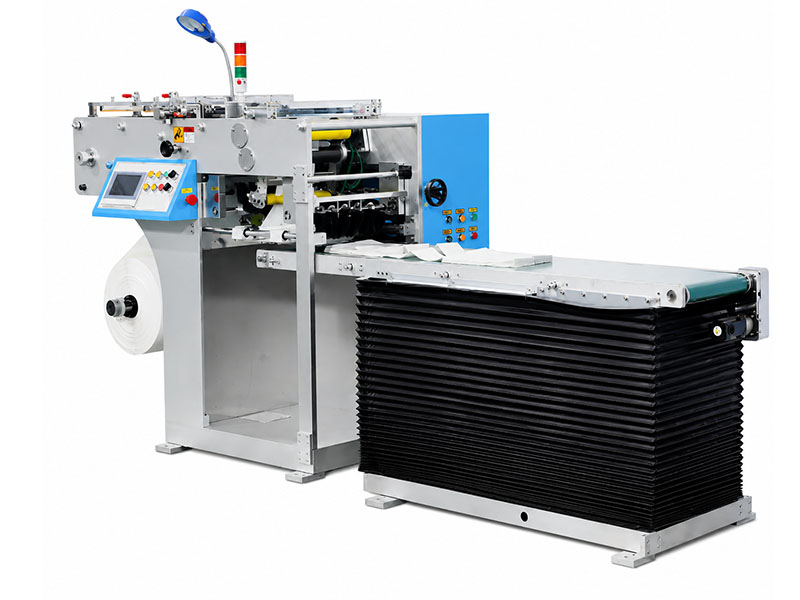

GF-320 Automatic
Folding Machine

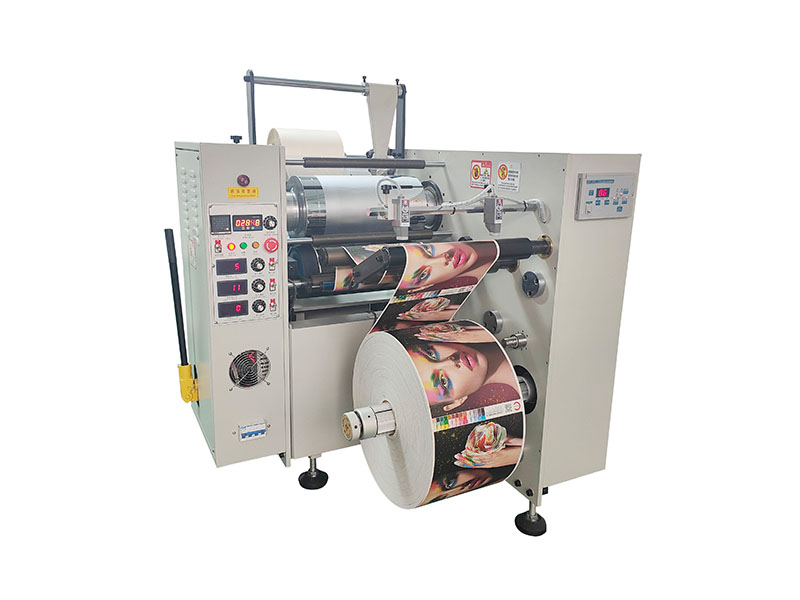

GLM-350A Roll to Roll Label Heat Laminating Machine
See Our Label Converting Equipment at Work
This video demonstrates the GF-320 Automatic Adhesive Label Slitting Folding Machine processing self-adhesive label stock at production speed — showing the complete slitting, folding, and stacking sequence in a single pass.
Designed for label converters handling fanfold and roll-to-stack formats, the machine maintains consistent fold alignment and cut accuracy across paper, film, and foil substrates.
MAIN TECHNICAL PARAMETERS:
Semi-rotary flexo printing with over lamination, Semi-rotary die cutting with removable waste matrix unit, support UV coating and spot varnishing etc
Semi-rotary die cutter, shear slitting system support razor as well. Optional automatic baldes preset system (auto positioning system)
Modular designs for flexible converting and finishing solutions inline, easy to connect to non-stop splicer (none stop unwinder) and non-stop auto rewinder
| Model | FX-370 |
| Max. Web Width | 370mm |
| Max. Semi Rotary Speed | 300RPM(≈60m/min) |
| Die Cutting Accuracy | ±0.15mm |
| Flexo Register Accuracy | ±0.15mm |
| Printing Cylinder | 140T 1/8”CP (Standard) |
| Printing Repeat | 100mm~380mm (Standard cylinder) |
| Magnetic Cylinder | 140T 1/8”CP (Standard) |
| Max. Die Cutting Area | 380mm×350mm (L×W) |
| Max. Unwinding Diameter | 800mm |
| Max. Rewinding Diameter | 800mm |
| Power Supply | 380V/3Phases/50HZ |
The FX-370Pro flatbed silk label converting solution combined close-loop tension control, web guide, flatbed die cutting module (can do flatbed hot stamping as well), flatbed silk screen (can do varnish and silk printing), semi/full rotary flexo printing, semi/full rotary die cutting and slitting together into one machine.
It has the advantages of easy operation, strong adaptability and high production efficiency.
| Model | FX-370 |
| Max. Web Width | 370mm |
| Max. Semi Rotary Speed | 300RPM(≈60m/min) |
| Max. Full Rotary Speed | 100m/min |
| Die Cutting Accuracy | ±0.15mm |
| Printing Cylinder | 140T 1/8”CP (Standard) |
| Printing Repeat | 100mm~380mm (Standard cylinder) |
| Magnetic Cylinder | 140T 1/8”CP (Standard) |
| Max. Die Cutting Area | 380mm×350mm (L×W) |
| Hot Foil Area | 350×370mm(L×W) |
| Max. Unwinding Diameter | 800mm |
| Max. Rewinding Diameter | 800mm |
| Power Supply | 380V/3Phases/50HZ |
Unwinding adopts semi-automatic constant tension. Can be used for efficient folding of logistics labels, boarding passes, scenic tickets, game coins etc.
PLC control, the folding length can be input on the touch screen directly.
This GF-320 machine is the best partner for printing machine, flatbed die cutting machine and rotary die cutting machine. It is an ideal machine for label folding in printing factories.
| Model | GF-320 |
| Max. Unwinding Diameter | 700mm |
| Folding Width | 60-320mm (can be customized) |
| Max. Mechanical Speed | 80m/min |
| Min. Folding Length | 100min |
| Max. Folding Length | 350mm |
| Min. Dotted Slitting Width | 60mm |
| Power Supply | 220V/1Phase |
| Air Source | 0.6MPa |
Mainly used for laminating various synthetic paper, pearlescent film, silver-eliminating dragon, bright silver, PET, PP, cardboard, copper board and other roll materials
Silicone rubber rollers imported materials, with sticky ink under high temperature, high pressure, non-stick characteristics of the paper
The use of a hydraulic device provides greater lamination pressure to the coating rollers, sufficient to meet the pressure requirements of various pre-coated films
| Model | GLM-350A |
| Laminating Width | 100mm(min)-350mm(max) |
| Laminating Speed | 6-70m/min |
| Core Diameter | 76mm |
| Hot Roller Length | 390mm |
| Max. Unwinding Diameter | 620mm |
| Max. Rewinding Diameter | 620mm |
| Laminating Temperature | 80-130℃ |
| Heating Way | Heating oil |
| Power Supply | 380V 50/60HZ |
| Overall Dimension | 1380×1100×1250mm |
| Weight | 700KGS |
Custom Label Converting & Finishing Equipment Configurations for Your Production Line
Every label converting operation has different substrate combinations, finishing requirements, and output targets.
GGIN label converting and finishing equipment can be configured to match your specific web width, converting speed, and inline finishing needs — whether you are running pressure-sensitive labels, wet-glue applications, or multi-layer laminate constructions.
Laminating units, die cutting stations, slitting modules, and inspection systems can be integrated into a single converting line or supplied as standalone equipment to complement your existing setup.
Industries and Applications Served by GGIN Label Converting & Finishing Equipment
GGIN label converting and finishing equipment is used by label converters and packaging manufacturers producing pressure-sensitive labels, in-mold labels, and specialty printed materials across a wide range of end markets — including food & beverage, personal care, pharmaceutical, and industrial labeling.
Our equipment also serves converters producing multi-layer constructions, laminated packaging films, and specialty substrates that require precise tension control and consistent finishing quality throughout the converting process.
If your application involves specific substrate combinations, adhesive systems, or inline finishing requirements, our engineering team is available to assess compatibility and recommend the right equipment configuration before purchase.
Multiple Application of GGIN Machinery Converting & Finishing Equipment
Food Labels
From seasoning sachets to cooking oil bottles, our converting equipment handles pressure-sensitive labels on paper, film, and foil with consistent cut accuracy at high output.
Logistics & Shipping Labels
Barcode labels, shipping tags, and warehouse identification labels — produced in fanfold or roll format, compatible with thermal transfer and direct thermal printing systems.
Personal Care & Cosmetics Labels
Shampoo, lotion, and fragrance labels demand precise die-cutting and clean edge finishing. Our machines support multi-layer constructions and transparent film substrates.
Beverage Labels
Mineral water, beer, and energy drink labels require high-speed slitting and reliable tension control to maintain registration on wet-glue and pressure-sensitive materials.
Pharmaceutical Labels
Medicine bottles, IV bag labels, and health supplement packaging require tamper-evident constructions and tight dimensional tolerances — fully supported by our converting line configurations.
Chemical & Industrial Labels
Lubricant drums, chemical containers, and hazardous material packaging require labels with strong adhesion, solvent resistance, and GHS-compliant hazard symbol printing — our converting equipment supports durable synthetic substrates including PP, PE, and polyester film.
Looking for a Label Converting Machine That Fits Your Production Line?
Tell us your web width, converting speed, and substrate requirements — our engineering team will identify the right configuration and deliver a detailed quotation within 24 hours.
