Precision Slitting Rewinder Machines for Label and Flexible Packaging
Accurate slitting and rewinding is a critical finishing step for label converters and flexible packaging producers.
GGIN slitting rewinder machines deliver consistent slit width accuracy, stable tension control, and clean edge quality across paper, film, and laminate substrates — supporting both high-speed production runs and short-run job changes.
Slitting Rewinder Manufacturer in China
GGIN manufactures slitting rewinder machines for label converting, flexible packaging, and specialty material processing applications. Our machines are supplied to converters and print service providers across multiple industries who require precise web slitting and reliable roll-to-roll rewinding performance.
Available configurations include duplex slitting, center surface rewinding, and turret rewinding systems, with web width and slitting speed specifications matched to your material type and production volume. Tension control systems are designed to handle a wide range of substrates without deformation or edge quality loss.
GSL-350X Automatic
Slitting Machine
GSL-320B Automatic
Slitting Machine
GSL-370SL Slitting Machine With Auto Knife Set Up
GSL-370 High Speed
Slitting Machine
GSL-320T Slitting Machine
With Turret Rewinder
GISL-370 Automatic Inspection
Slitting Machine
GSL-1300S High Speed Jumbo Roll Slitting Machine
GSL-800 Automatic Jumbo Roll
Slitting Machine
See GGIN Slitting Rewinder Machines Running at Full Production Speed
These videos show two of our most requested configurations — the high-speed turret rewinder for continuous label roll production, and the compact coreless rewinder for space-constrained converting operations. Both machines demonstrate stable tension control and consistent slit edge quality across self-adhesive film substrates.
MAIN TECHNICAL PARAMETERS:

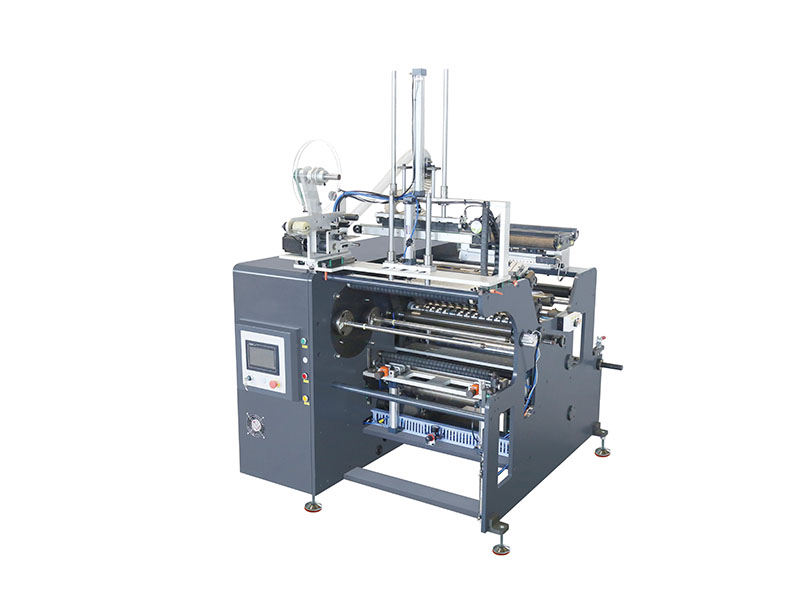

The AS-350X slitting machine adopts servo system (total 3 servo).
Turret rewinder with automatic cutting device and automatic labeling system, with high stability and reliability, can run very smoothly in actual production.
Compact design, saving space, providing convenience for small batch label products.
| Model | GSL-350X |
| Max. Slitting Speed | 150m/min |
| Max. Web Width | 350mm |
| Max. Unwinding Diameter | 750mm |
| Max. Turret Rewinding Diameter | 200mm |
| Min. Slitting Width | 20mm |
| Power Supply | 380V/3phase |
| Air Source | 0.8MPa |
| Overall(L*W*H) | 2100x1250x2000mm |
| Weight | 1100KGS |

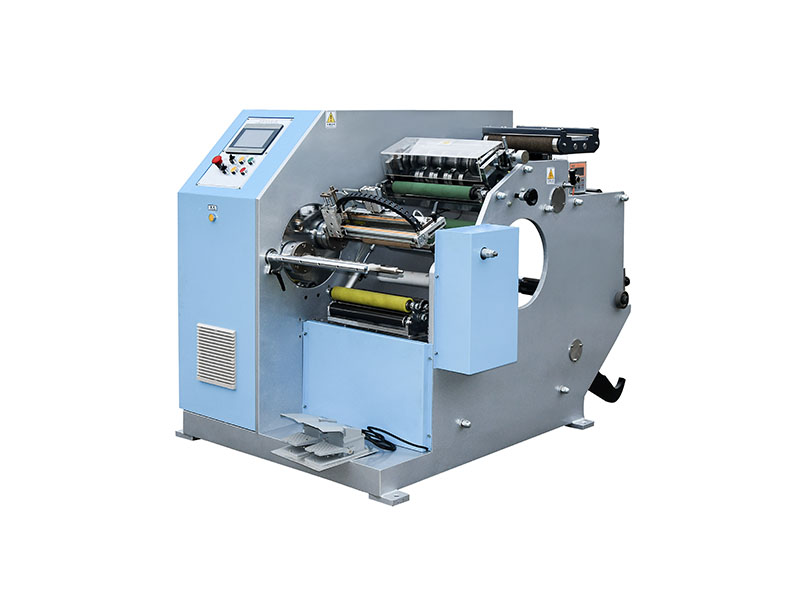

This GSL-320B machine adopts full servo and PLC control. It features positional stop, automatic paper tube rewinding to prevent adhesive sticking, solving the problem of print head jamming during label printing.
High speed, high efficiency, precise slitting, simple operation, and stable, noiseless operation. It is ideal for self-adhesive die-cutting and slitting, making it the perfect label slitting machine for various factories.
| Model | GSL-320B |
| Max. Slitting Speed | 160m/min |
| Max. Web Width | 320mm |
| Max. Unwinding Diameter | 800mm |
| Max. Turret Rewinding Diameter | 200mm |
| Min. Slitting Width | 25mm |
| Power Supply | 220V/1phase |
| Overall(L*W*H) | 1500x1200x1200mm |
| Weight | 950KGS |

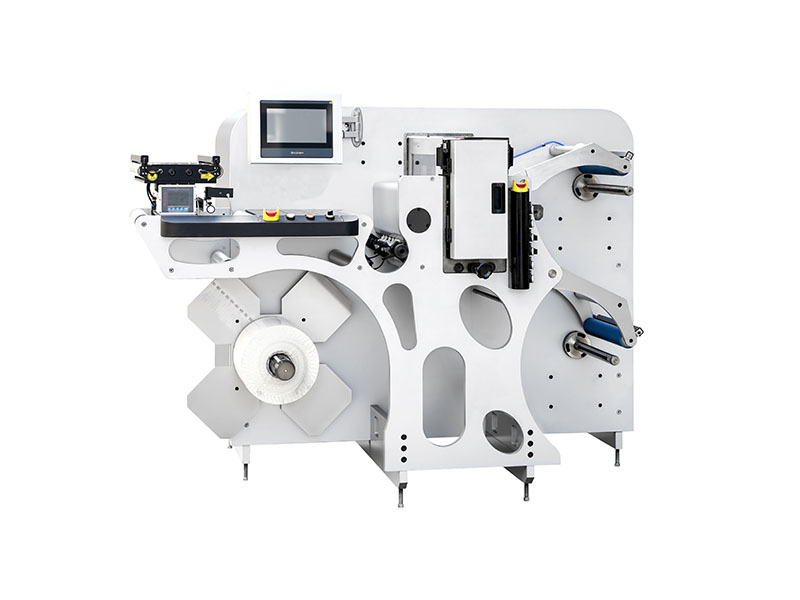

GSL-370SL is designed for narrow web label slitting. It adopts full servo motor driven system and auto knife set up system, taper tension control system, web guider system, up & bottom type rewinder.
The speed of machine can reach 350m/min, it is suitable for different size inner cores slitting and rewinding
| Model | GSL-370SL |
| Max. Slitting Speed | 350m/min |
| Max. Web Width | 370mm |
| Max. Unwinding Diameter | 700mm |
| Max. Rewinding Diameter | 700mm |
| Power Supply | 380V+N+PE |
| Air Source | 0.6MPa |
| Overall(L*W*H) | 2050x1350x1350mm |
| Weight | 1300KGS |

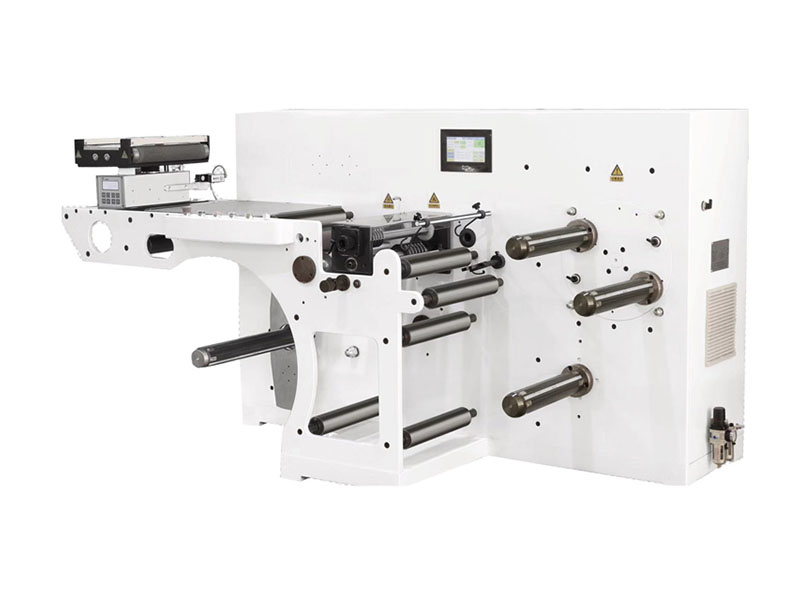

GSL-370 is designed for narrow web label slitting. It adopts full servo motor driven system, taper tension control system, international famous web guider system, turret type rewinder.
The speed of machine can reach 350m/min, it is suitable for different size inner cores slitting and rewinding
| Model | GSL-370 |
| Max. Slitting Speed | 350m/min |
| Max. Web Width | 370mm |
| Max. Unwinding Diameter | 800mm |
| Max. Turret Rewinding Diameter | 450mm |
| Max. Down Rewinding Diameter | 700mm |
| Precision | ±0.15mm |
| Power Supply | 380V/3Phases |
| Overall(L*W*H) | 2200x1350x1350mm |
| Weight | 1300KGS |

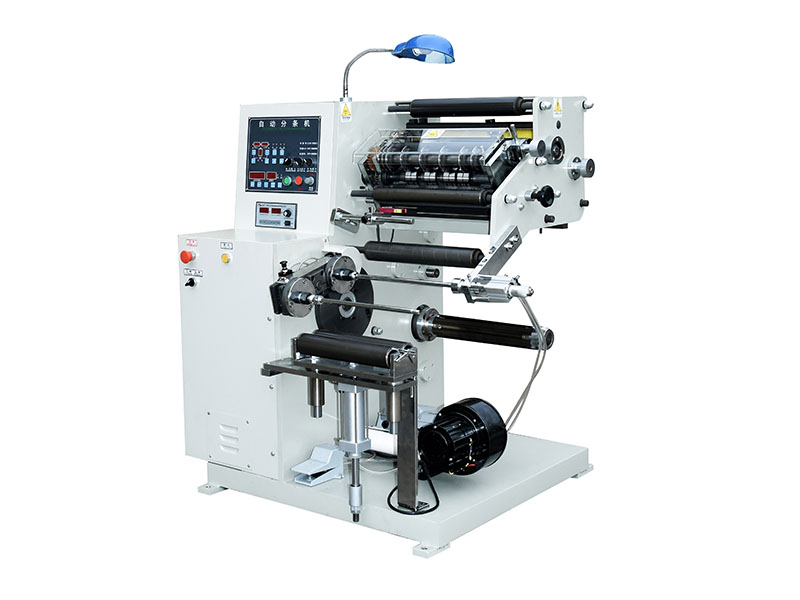

Label converting and finishing series for labels(supermarket,bank office use), Pvc, OPP, BOPP, AL Foil.etc;
Air expanding shafts support from 1.0inch ~3 inch under auto automatic pneumatic system, with powder clutch tension controller
Pedal switch design for easy operation control the quantity and meters as targeted.
| Model | GSL-320T |
| Slitting Speed | 120m/min |
| Max. Web Width | 320mm |
| Max. Unwinding Diameter | 700mm |
| Max. Turret Rewinding Diameter | 200mm |
| Min. Slitting Width | 25mm |
| Support Core Diameter | 13-76mm |
| Dimensions | 1100×900×1100mm |
| Machine Weight | 500KGS |

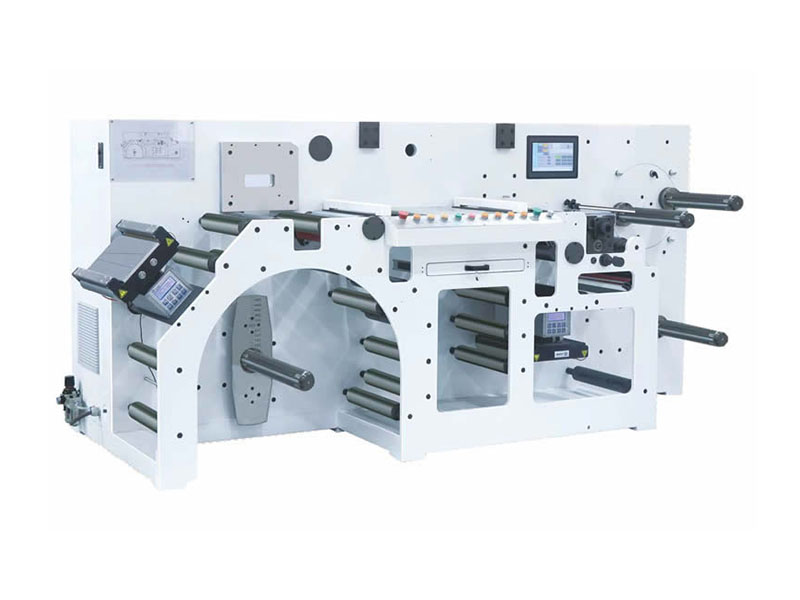

GISL-370 inspection slitting system is driven by full servo motor. Both rewind and unwind choose tapper tension control system, international web guider, PLC control system, it’s suitable for Paper, Adhesive Paper, PVC/PE, PP inject printing
| Model | GISL-370 |
| Max. Slitting Speed | 300m/min |
| Max. Web Width | 370mm |
| Effective Detection Width | 350mm |
| Max. Unwinding Diameter | 800mm |
| Max. Turret Rewinding Diameter | 450mm |
| Max. Rewinding Diameter | 800mm |
| Min. Slitting Width | 20mm |
| Power Supply | 380V/3Phases |
| Air Source | 0.8MPa |
| Overall(L*W*H) | 3015x1250x1380mm |
Loading material is via hydraulic type up and down swing mechanism to realize auto feeding material, so as to reduce labor intensity
Suction device is equipped with guiding tube to successfully suck out the edge material
Upper and bottom rewinding shafts both adopt motor separate drive.With horizontal rotary discharging arm function
| Model | GSL-1300S |
| Max. Mechanical Speed | 600m/min |
| Max. Web Width | 1300mm |
| Min Slitting Width | 25mm(based on material) |
| Max. Unwinding Diameter | 800mm |
| Max. Rewinding Diameter | 600mm |
| Material Thickness Range | 0.012–0.2mm |
| Applicable Materials | Pharma Aluminum foil/ aluminum and plastic lamination film / plastic lamination film etc. |
| Power supply | 380V/3Phases |
| Air Supply | ≥0.6MPa |
| Equipment Weight | 4500KGS |

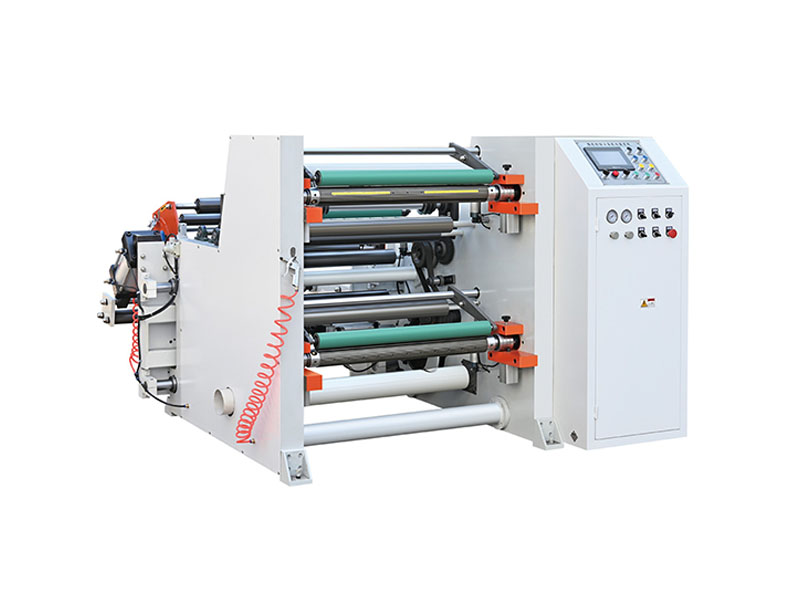

Frequency drive, PLC centralized control+touch screen
Auto taper tension control
Hydraulic system automatically uploader lifter
Constant-tension system (Double tension sensor)
| Model | GSL-800 |
| Slitting Speed | 5-200m/min |
| Max. Web Width | 800mm |
| Min Slitting Width | 30mm |
| Max. Unwinding Diameter | 800mm |
| Max. Rewinding Diameter | 600mm |
| Accuracy of Slitting | ±0.2mm |
| Power supply | 380V/3Phase |
| Dimensions | 2300×2100×1700mm |
| Machine Weight | 2000KGS |
Precision Engineering Behind Every Slit

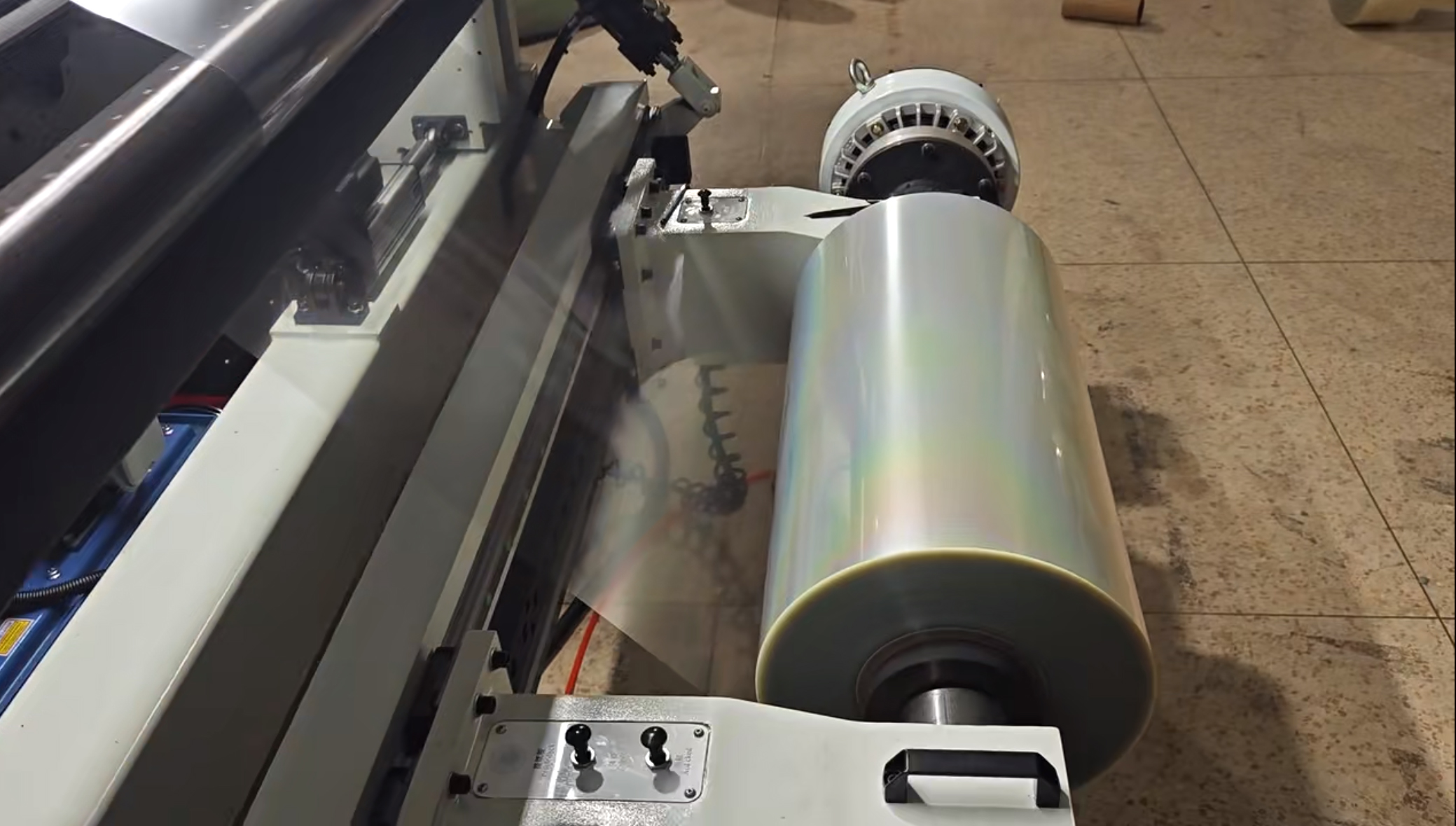

Razor Slitting on Sensitive Film Substrates
Our slitting machines support razor, score, and crush cutting configurations. The circular blade system shown here is optimized for holographic and metallized films, delivering clean edge cuts without delamination or curl at speeds up to 300m/min.

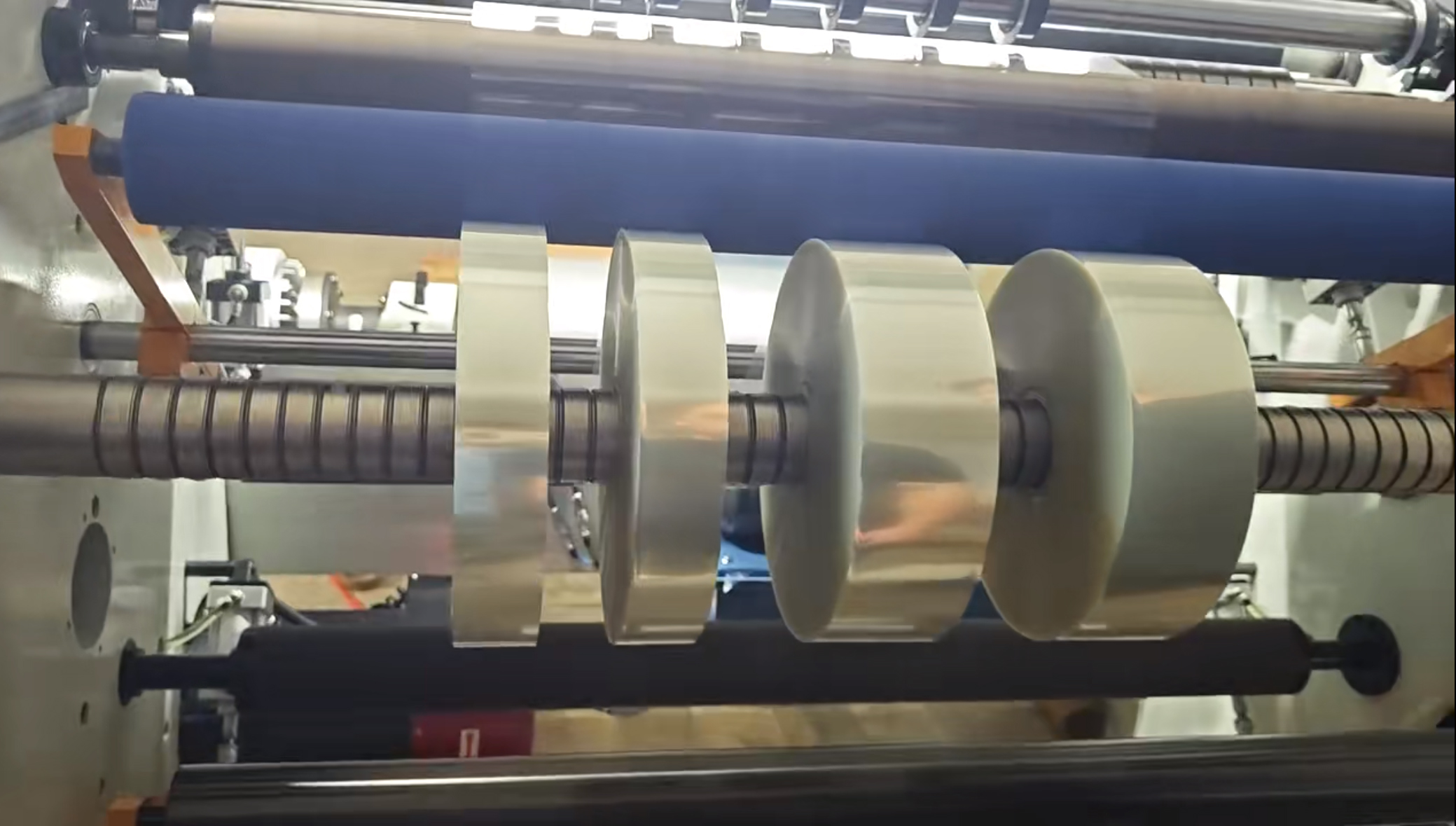

Multi-Lane Rewinding with Independent Tension Control
Each rewind shaft operates with independent tension zones, ensuring uniform roll hardness and consistent outer diameter across all slit lanes — critical for downstream printing and labeling applications.
Custom Slitting Rewinder Configurations for Your Label and Packaging Operation
Slitting requirements vary significantly across substrate types, roll dimensions, and production speeds. GGIN slitting rewinder machines are available in duplex slitting, center surface rewinding, and turret rewinding configurations, with web widths and slitting speeds specified to match your material type and output volume.
Industries and Applications Served by GGIN Slitting Rewinder Machines
GGIN slitting rewinder machines are used by label converters, flexible packaging producers, and specialty material processors who require precise web slitting and consistent roll-to-roll rewinding performance across paper, film, foil, and laminate substrates.
Our machines serve operations producing pressure-sensitive label rolls, printed flexible packaging reels, protective film rolls, and specialty industrial materials where slit width accuracy and edge quality directly affect downstream application performance.
Need Precise Slitting Performance for Your Label or Packaging Operation?
Share your material type, slit width range, and production volume with our team — we’ll recommend the right rewinder configuration and provide full specifications within 24 hours.
